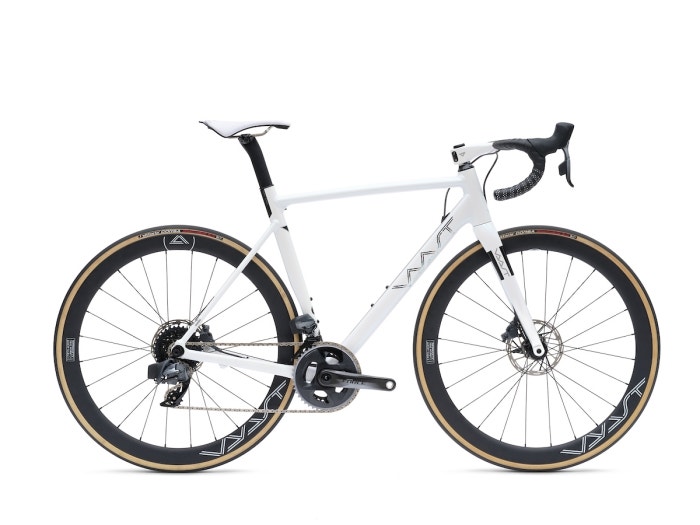

The R/1 Force offers super smooth, more productive eTap shifting, an integrated aero cockpit, and refined geometry, plus the unmatched qualities only a VAAST Super Magnesium frame can deliver, resulting in a seriously formidable tarmac machine.
The aero-inspired Model R/1 Road optimizes technology and design for pavement - where speed, aerodynamics, weight and agility make all the difference. With a weight and performance level other non-ferrous metal frames can’t quite achieve, the 1250g Allite Super Magnesium™ frame is meticulously crafted with progressive geometry that results in the perfect fit no matter the rider. Utilizing VAAST V-Fit parameters for comfort and control, the head tube and seat tube angles are carefully chosen to place the rider in an optimal, confident position and ensure proper trail for neutral steering geometry. While the R/1 adopts the use of VAAST’s proprietary V-Fit technology like its award-winning A/1 predecessor, unlike the A/1, the R/1 tube profiles re-imagine Super Magnesium capabilities resulting in a 30% aerodynamic performance gain over conventional round tube frames. Additionally, clearances are ample enough to fit up to 30mm tires, or to allow fenders to be fitted with conventional 25/28mm tires. All of this, combined with carbon wheel sets, and the proprietary carbon fork and seatpost, rounds up to a complete package for a ride worthy of getting lost in the wind for countless miles.
Light, aerodynamic, fast - the all new VAAST Model R/1.
Frame | Road 700c disc, AE81 SuperMag, VAAST Road geometry, internal cable routing, fender ready. Up to 30mm tire clearance |
---|---|
Frame Weight | 1250g |
Fork | VAAST Road full-carbon disc. Up to 30mm tire clearance |
Tires | Vittoria Corsa, 700 x 25mm w/Ultralight tubes |
Max Tire Clearance | 30mm |
Rims | VAAST Aero Carbon 45mm, Tubeless Ready |
Rotors | SRAM Paceline 160mm |
Crank | SRAM Carbon Force DUB, 12-speed 46/33t |
Cassette | SRAM CS XG 1270, 12-speed, 10-33t |
Shifters | SRAM Force eTAP AXS |
RD | SRAM Force eTAP AXS |
FD | SRAM Force eTAP AXS |
Chain | SRAM Force 12-speed |
Brakes | SRAM Force eTAP, hydraulic disc |
Bottom Bracket | SRAM DUB T47 |
Hub F | Sealed cartridge bearing, 12 x 100mm thru axle, Centerlock, 24H |
Hub R | Sealed cartridge bearing, XDR 12-speed, 12 x 142mm thru axle, Centerlock, 24H |
Spokes | Bladed Double butted stainless |
Axles | VAAST M12 w/Removable lever |
Handlebar | VAAST Integrated Pro Carbon |
Stem | VAAST Integrated Pro Carbon |
Grips / Tape | VAAST Anti Slip |
Seat Post | VAAST Carbon fiber, (300mm 49/52, 350mm 54/56/58/60) |
Saddle | ProLogo Scratch M5 PAS w/Tirox rails |
